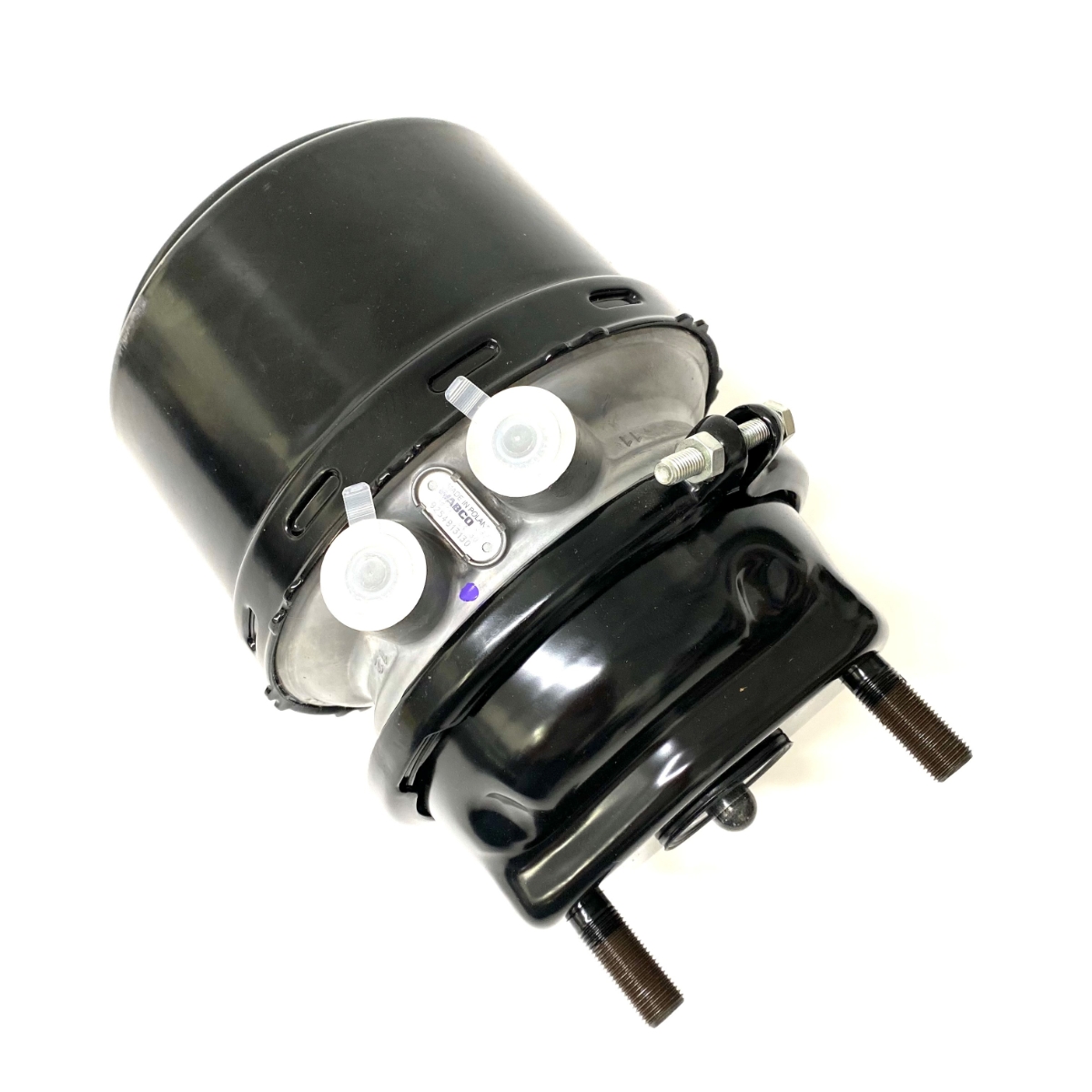

Spring Brake (disc) 24/30
Bolt lengths: 43.0 mm
Bolt threads: M16 x 1.5
Distance between bolts: 120.6 mm
Max. operating pressure: 10.5/8.5 bar
Output force M: 8500 N
Port thread 11: M16 x 1.5 JED - 152
Port thread 12: M12 x 1.5 JED - 152
Port threads: M16 x 1.5
Push-rod length: 15 mm
Push-rod thread: Ball R8
Release pressure: 5.3 bar
Return-spring force: 245 N
Stroke: 65/65 mm
Total length: 273.0 mm
Type: 24/30
Type of operation: Disc
