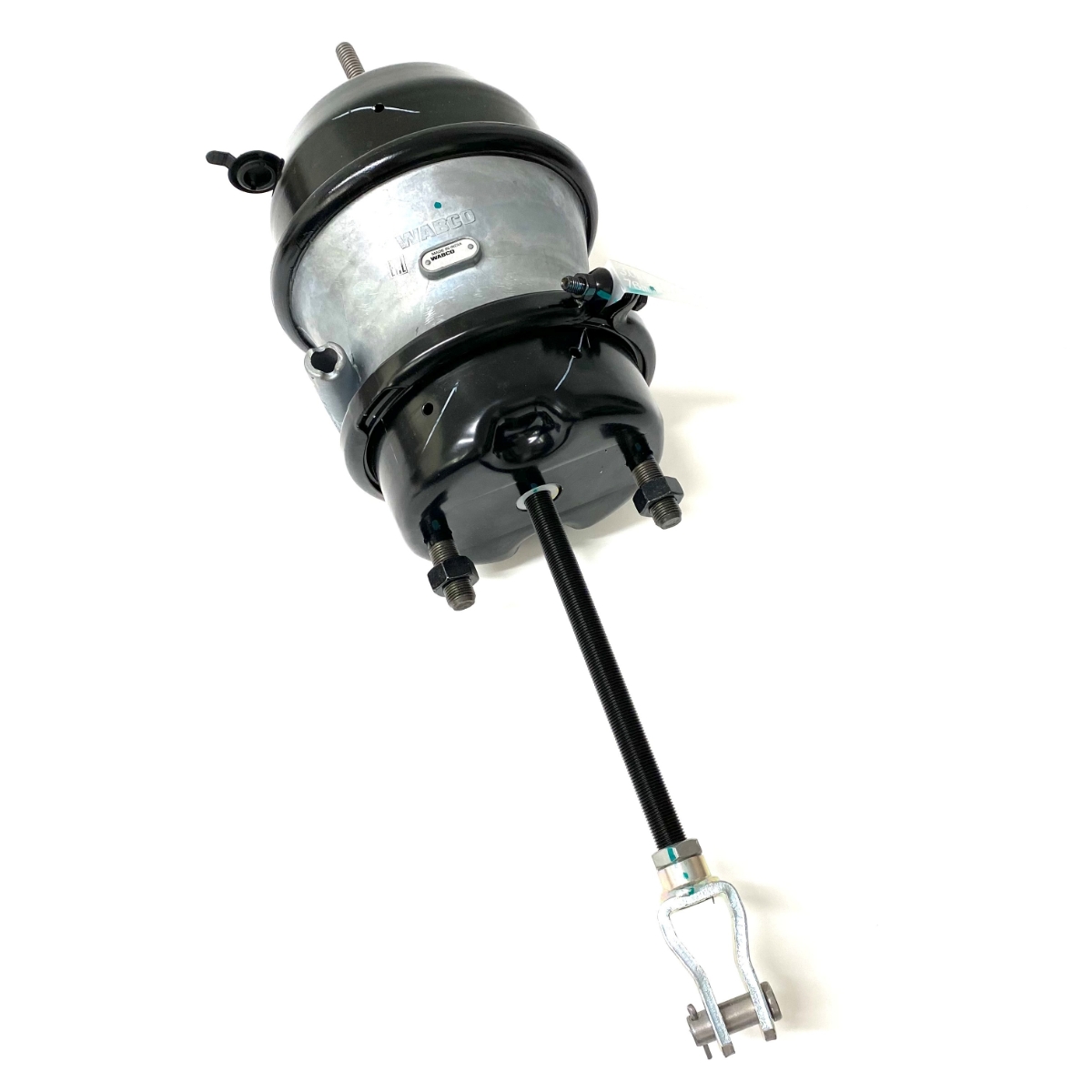

Double-Diaphragm Tristop 24/30
Bolt lengths: 42.5 mm
Bolt threads: M16 x 1.5
Clamp Band: Ø 186 mm
Clamp band position: 45°
Clevis pins: 13.9 mm
Diameter: 206.5 mm
Distance between bolts: 120.6 mm
Length: 262.0 mm
Max. operating pressure: 10.2/8.5 bar
Port Angle: Position Side port -90°
Port thread 11: M16 x 1.5
Port thread 12: M16 x 1.5
Port: Working pressure [P emax.]: 10.2/8.5 bar
Push-rod length: 279 mm
Push-rod thread: M16 × 1.5
Release pressure: 4.8 bar
Stroke: 75/75 mm
Thread length: 279 mm
Total length: 363.0 mm
Type: 24/30
Type of operation: Cam
Version: Without boot
Yoke: Yes
